Telescopic loader G1200 TELE

A mini shovel with a tele arm for a lift height of 2.17 meters and a lifting capacity of 750 kg, making the G1200 TELE a versatile machine that can work in limited spaces while delivering high performance. Additionally, the mini wheel loader is easy to transport from one location to another due to its limited weight of only 1,200 kg.

Configure now Request a price

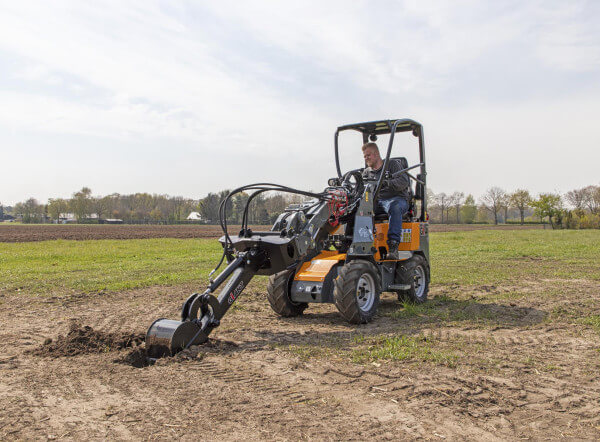

g1200telegraafarm[3]

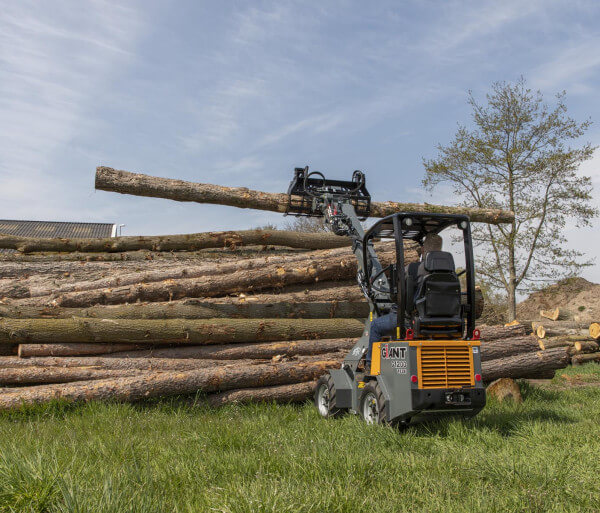

g1200teletakkenklem[1]

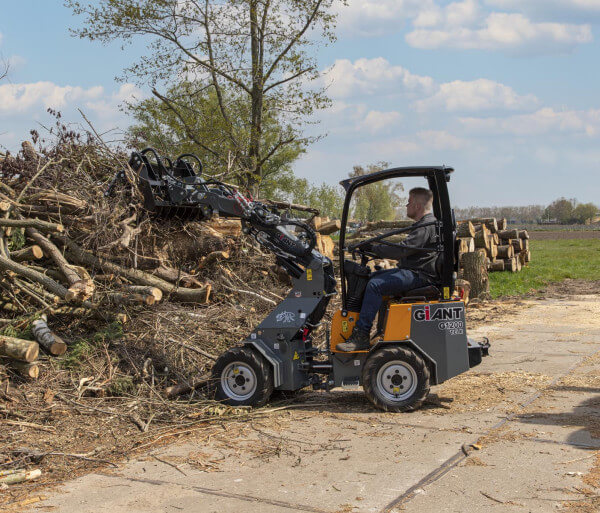

g1200teletakkenklem[3]

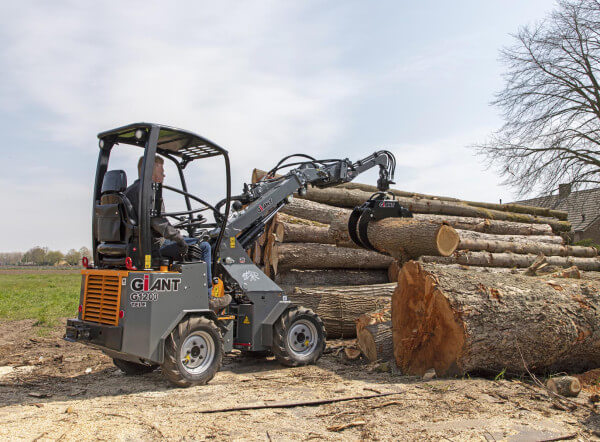

g1200telebomenklem

Standard version

GIANT Compact mechanical quick change system
ROPS/FOPS safety roof incl. safety doors (L+R)
Luxury seat incl. safetybelt, armrest and extended backrest
Extension and retraction of the lifting arm, mechanical controlled by lever next to the joystick
Parallel guidance on lifting arm (by compensating cylinder)
1x Double acting hydraulic function on lifting arm, mechanical
Floating position on lifting cylinder(s)
Main switch
Tow coupling
Oil cooler
Lifting eyes

Technical specifications

Service weight ¹
1200 kg
Lifting capacity
750 kg
Tipping Load ²
See table above kg
Lifting height ²
2170 mm
Length without bucket
2820 mm
Machine height ³
2060
Width on standard tires
920 mm
Standard tires
23 x 8.50- 12 AS
Travel Speed
0-15 km/h
Engine
Kubota D902 (STAGE V)
Cylinders
3
Engine power
25 hp
Engine power (kW)
17,5
Fuel tank capacity
46
Oil tank capacity
48 l
Type
Hydrostatic 4 wheel drive
Transmission
Automotive control
Control
Drive back- and forward through electrical switch
Differential lock
Electric controlled slip differential
Final drive
4 heavy Poclain wheel engines
Driving hydraulics
65 l/min (350 bar)
Working hydraulics
28 l/min (150 bar)
Parking brake
Hydraulic multidisk brake
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ ᶟ Measured on standard tyres with safety roof
