G1500 X-TRA

The G1500 X-TRA is the lightest mini loader in an "X-TRA" version. Due to the low front frame, the G1500 in this version can lift extra weight. The four heavy-duty wheel motors and the differential lock function ensure that the machine always maintains grip in loose sand. This makes this machine very suitable for tasks such as paving or landscaping.

Configure now Request a price

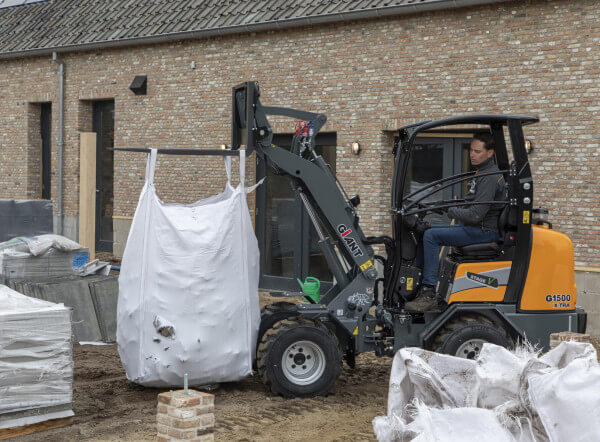

g1500x trapalletvork[3]

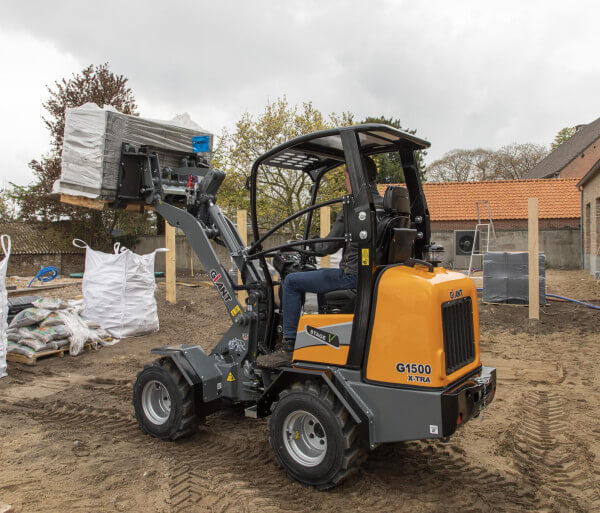

g1500x trapalletvork[2]

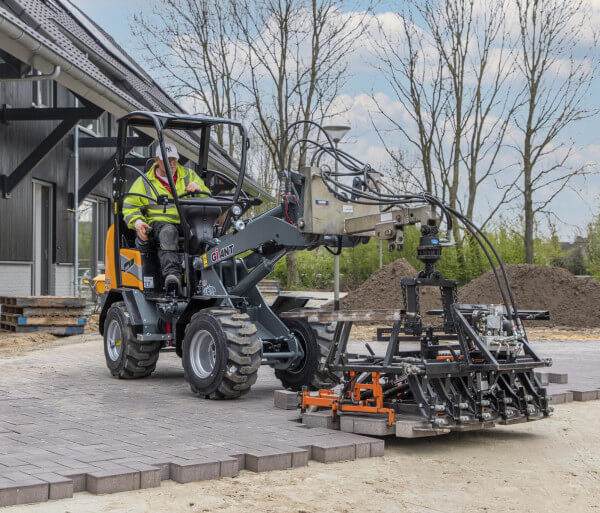

g1500x trategelklem[2]

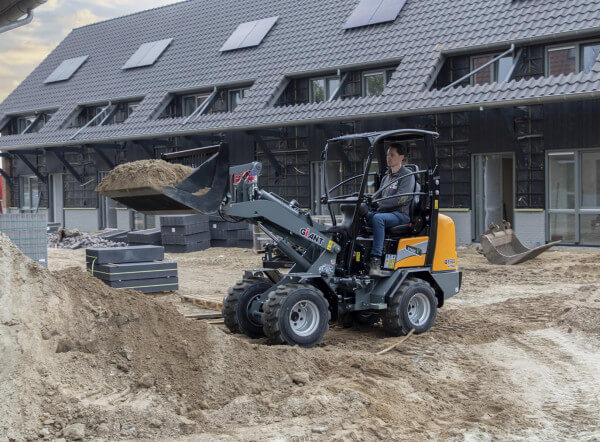

g1500x trapuinbak[1]

Standard version

GIANT Standard quick change system with hydraulic locking
Double acting valve at the front (mechanical)
Floating position on lifting cylinder(s)
ROPS / FOPS safetyroof incl. safety doors left and right
Seat with safety belt, armrest and extended backrest
Main switch
Towing hook at the back
Working light (halogen) at the front
Cyclone filter
Oil cooler

Technical specifications

Service weight ¹
1525 kg
Lifting capacity
1100 kg
Tipping Load ²
1210 kg
Lifting height ²
2070 mm
Length without bucket
2720 mm
Machine height ³
2230
Width on standard tires
1100 mm
Standard tires
26x12.00-12 AS
Travel Speed
0-12 km/h
Engine
Kubota D1105 (STAGE V)
Cylinders
3
Engine power
26 hp
Engine power (kW)
19
Fuel tank capacity
25
Oil tank capacity
41 l
Type
Hydrostatic 4 wheel drive
Transmission
Automotive control
Differential
Electric controlled length differential lock
Final drive
4 heavy Poclain wheel engines
Pulling force standard
9200 N
Driving hydraulics
84 l/min (350 bar)
Working hydraulics
42 l/min (170 bar)
Parking brake
Hydraulic multidisk brake
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ ᶟ Measured on standard tyres with safety roof
g1500 x tra tobroco giant

G1500 X-TRA, but in the style that suits you!
