Electro Wheel loader G2200E X-TRA

The electric mini loader G2200E X-TRA has a lifting capacity of 2,200 kg, a lift height of 2.45 meters, and is specially developed for extremely heavy-duty work and tasks in construction and earthmoving. The wheel loader combines the best of both worlds with the advantages of an articulated loader and virtually silent operation with no emissions. Therefore, the G2200E X-TRA is ideal for working in buildings or on construction sites in urban areas.

Configure now Request a price

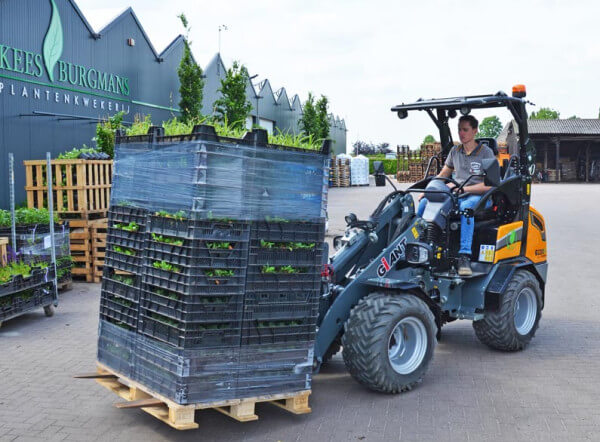

g2200ex trapalletvork[2]

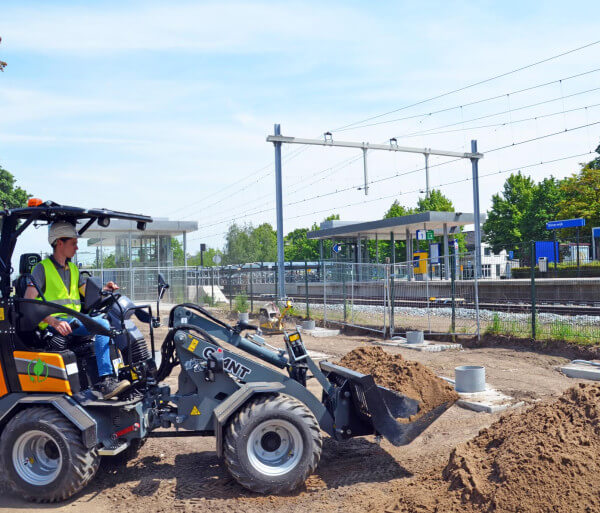

g2200ex tra puinbak[1]

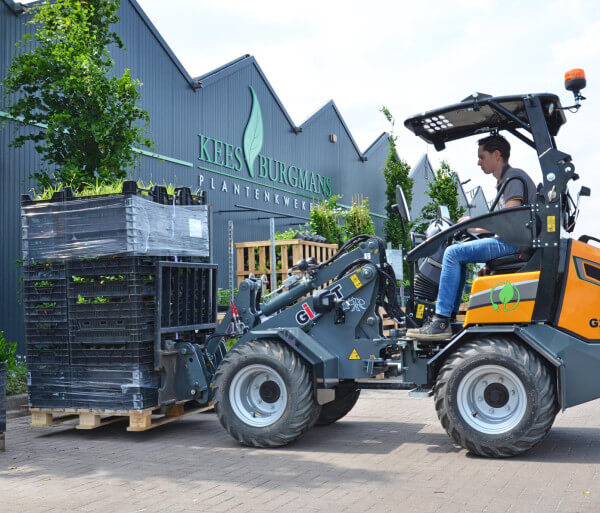

g2200ex trapalletvork[1]

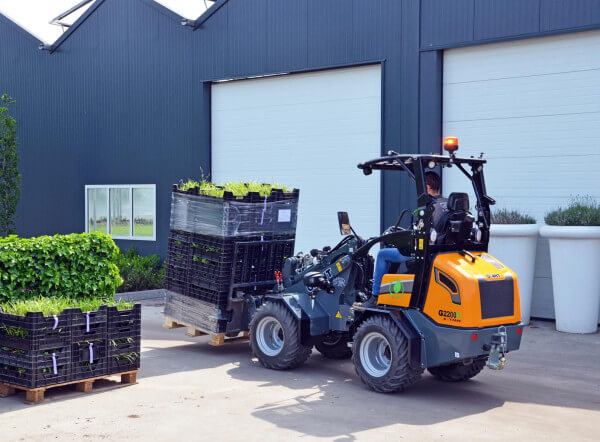

g2200ex trapalletvork[3]

Standard version

Hydraulic Quick Hitch
Double acting valve at the front (mechanical)
ROPS / FOPS safetyroof incl. safety doors left and right
Hydraulic servicebrake on 4 wheels
Luxury seat with safetybelt, armrest and extended backrest
Towing hook at the back
Working light (LED) at the front
Battery management system
Anti-theft protection with access code (not certified)

Technical specifications

Service weight ¹
2200 kg
Lifting capacity
2200 kg
Tipping Load ²
2054 kg
Lifting height ²
2450 mm
Length without bucket
3054 mm
Machine height ³
2300
Width on standard tires
1080 mm
Standard tires
10.0/75x15.3 AS
Travel Speed
0-18 km/h
Electric motor
6,5 kW
Energy recuperation
Machine recuperates energy when it rolls out or drives downhill
Type
Electric four wheel drive with cardan shaft
Differential
Axles with limited slip
Pulling force
12500
Hill-Hold control
Automatic brake prevents rolling back on a slope
Parking brake
Drum brakes
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ ᶟ Measured on standard tyres with safety roof
g2200e x tra tobroco giant

Electro Wheel loader G2200E X-TRA, but in the style that suits you!
