Wheel loader G2300 HD

The Giant G2300HD is a powerful 26 hp articulated loader. Equipped with Heavy Duty 8-ton axles, the loader offers a lifting capacity of 1,650 kg and a maximum lifting height of 2.8 meters. Its compact dimensions—1.08 meters in width and a clearance height of 2.3 meters—make it highly versatile. The safety roof, suspension seat, and halogen work lights ensure the machine is both comfortable and safe in any working situation.

Configure now Request a price

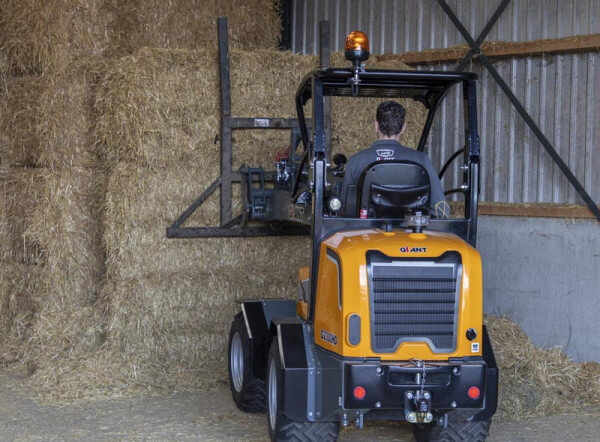

g2300hdbalenvork[1]

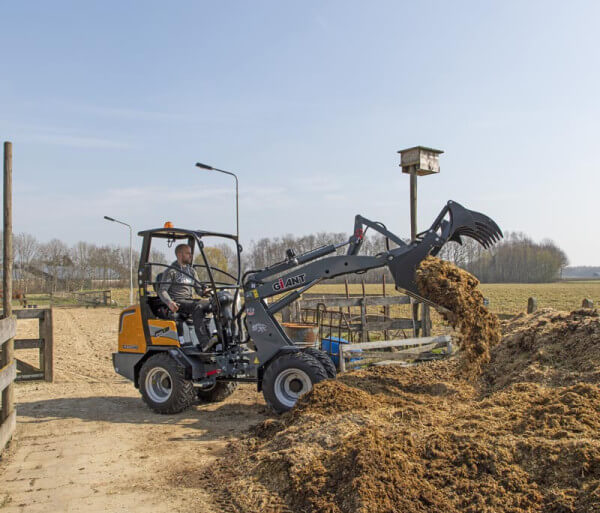

g2300hdpelikaanbakgesnedentanden[1]

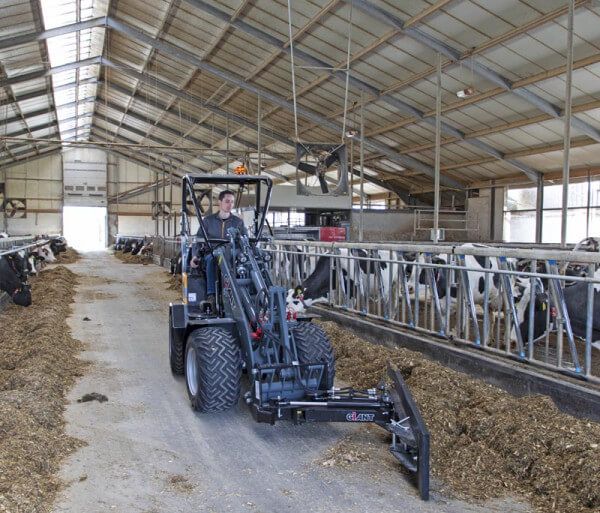

g2300hdvoer mestschuif[2]

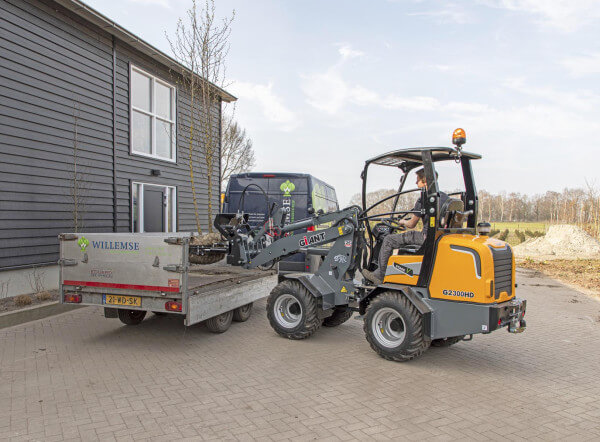

g2300hdkluit enpottenklem[4]

Standard version

ROPS / FOPS safetyroof incl. safety doors left and right
Mechanically suspended seat incl. safety belt and armrest
Double acting valve at the front (mechanical)
Floating position on lifting cylinder(s)
Hydraulic servicebrake on 4 wheels
Working light (halogen) at the front
Main switch
Rear tow coupling
Cyclone filter
Oil cooler

Technical specifications

Service weight ¹
2300 kg
Lifting capacity
1650 kg
Tipping Load ²
1665 kg
Lifting height ²
2825 mm
Length without bucket
3070 mm
Machine height ³
2300
Width on standard tires
1080 mm
Standard tires
10.0/75x15.3 AS
Travel Speed
0-10 km/h 0-20 km/h
Engine
Kubota D1505 (STAGE V)
Cylinders
4
Engine power
26 hp
Engine power (kW)
19
Fuel tank capacity
37 l
Oil tank capacity
56 l
Type
Hydrostatic 4 wheel drive
Transmission
Automotive control
Differential
Limited slip on both axles
Final drive
8 tons axles (Heavy Duty)
Pulling force
21000 N
Driving hydraulics
65 l/min (350 bar)
Working hydraulics
40 l/min (210 bar)
Parking brake
Drum brakes
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ ᶟ Measured on standard tyres with safety roof
