G3500 X-TRA

Developed as a reliable and compact powerhouse, the G3500 X-TRA is ready to get to work. Simultaneously, it provides a comfortable and safe working environment with simple and precise controls. This brand-new articulated loader offers contractors, rental companies, and government entities the flexibility needed to get the job done within a reliable timeframe.

Configure now Request a price

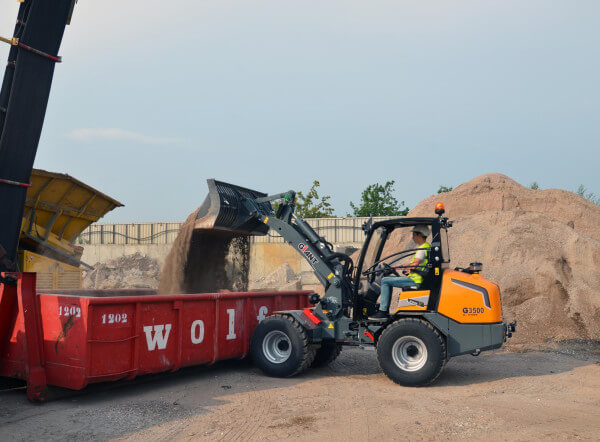

g3500x trapuinbak[1]

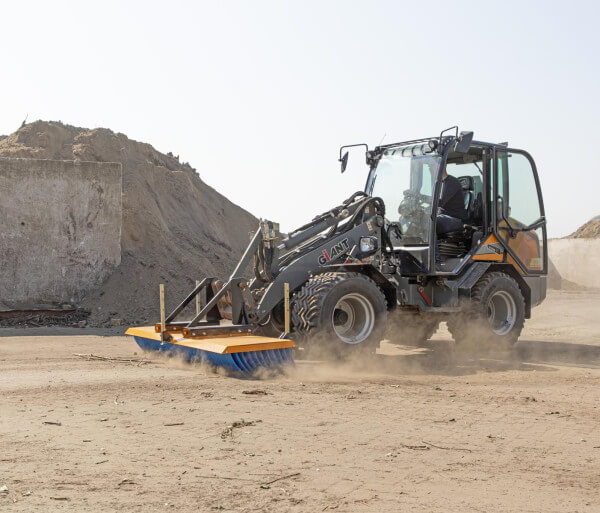

g3500x trablokbezem[1]

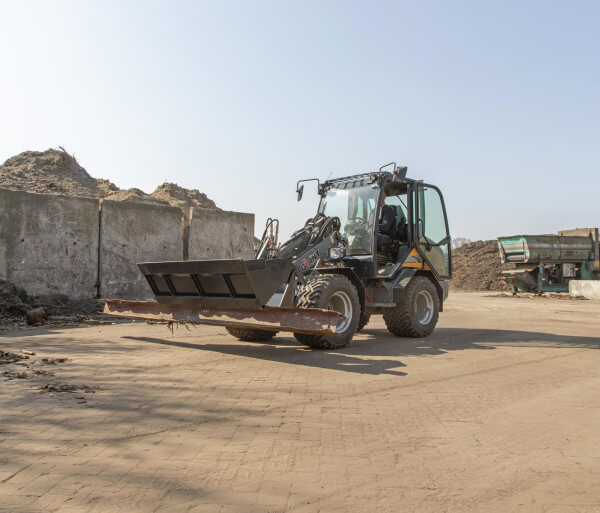

g3500x tra4in1bak[1]

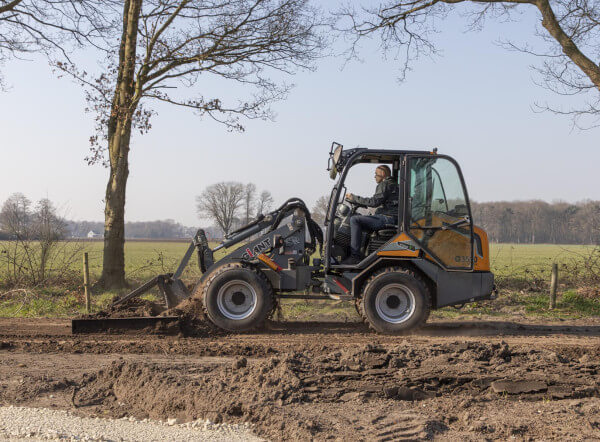

g3500x traegalistatieframe[1]

Standard version

Lifting arm
GIANT hydraulic quick change system
ROPS / FOPS safetyroof incl. safety doors left and right
Luxury air suspended seat with safety belt, armrest and extended backrest
Double acting valve at the front (mechanical)
Floating position on lifting cylinder(s)
Hydraulic servicebrake on 4 wheels
Working light (halogen) at the front
Battery, 77 Ah
Main switch
Anti-theft protection with access code (not certified)
Towing hook at the back
1 Counterweight integrated into the bumper
Cyclone filter
Oil cooler

Technical specifications

Service weight ¹
3700 kg
Lifting capacity
3225 kg
Tipping Load ²
3250 kg
Lifting height ²
2670 mm
Length without bucket
3750 mm
Machine height ³
2330
Width on standard tires
1340 mm
Standard tires
11.5/80-15.3 AS
Travel Speed
0-10 km/h 0-30 km/h (with automatic gear)
Engine
Kubota V2403-CR-TE5B DOC/DPF (STAGE V)
Cylinders
4
Engine power
66 hp
Engine power (kW)
48,5
Fuel tank capacity
49 l
Oil tank capacity
80 l
Type
Hydrostatic 4 wheel drive
Transmission
Automotive control
Differential
100% electrical differential lock on both axles
Final drive
14 tons axles with heavy planetary end drive
Pulling force
30.000
Driving hydraulics
112 l/min (450 bar)
Working hydraulics
70 l/min (220 bar)
Parking brake
Drum brakes
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
³ ᶟ Measured on standard tyres with safety roof
g3500 x tra tobroco giant

G3500 X-TRA, but in the style that suits you!
