Skid steer loader GS950T

TOBROCO-GIANT’s skid steer is also known as the “hop-on-hop-off machine”. It has all the features that are important for the user to carry out work as efficiently, safely and productively as possible. The skid on tracks has more traction than the wheeled skid and it distributes the pressure on the ground better. The machine’s tipping point has been changed, which increases the tipping load and makes it a more powerful compact machine.

Configure now Request a price

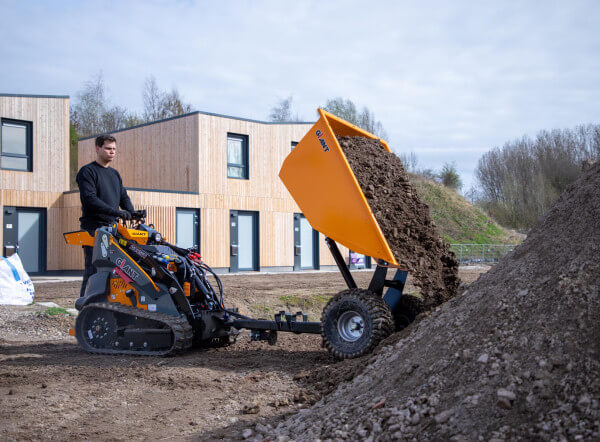

gs950tminidumper[1]

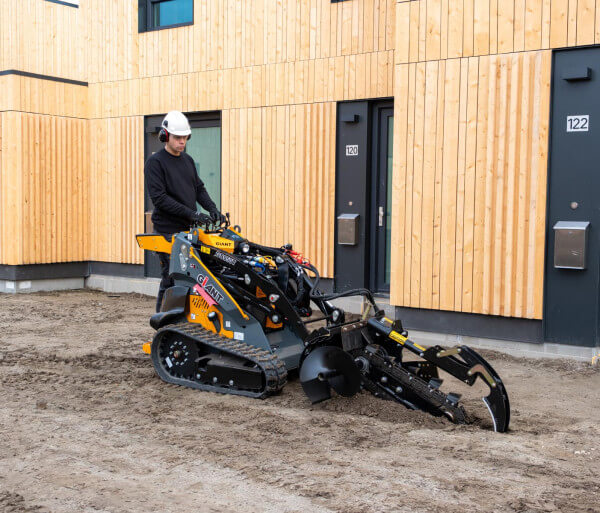

gs950tsleuvengraver[1]

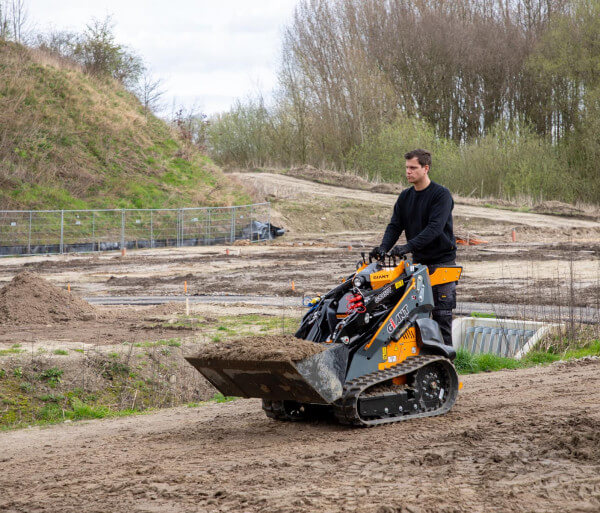

gs950tgrondbak[1]

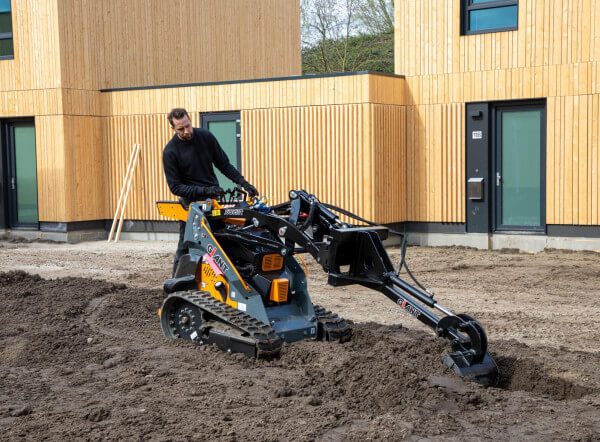

gs950tgraafarm[1]

Standard version

1x double acting hydraulic function on lifting arm, mechanically driven
Adjustable hip bracket
Single-side hydraulic hold on first double acting function
Parallel guidance on lifting arm
Counterweight integrated into the mudguards
Height-adjustable driver’s plateau
Hand throttle
Oil cooler
Lifting eyes

Technical specifications

Service weight ¹
1036 kg
Lifting capacity
576 kg
Tipping Load ²
736 kg
Lifting height ²
2030 mm
Length without bucket
1460 mm
Width on standard tires
900 mm
Travel Speed
0-5 km/h
Standard rubber tracks
Tracks 180
Engine
Kubota D902
Cylinders
3
Engine power
25 hp
Engine power (kW)
17,5
Fuel tank capacity
23
Oil tank capacity
41 l
Type
Diesel
Final drive
2 heavy wheel motors
Working hydraulics
37 L/min (180 bar)
¹ Measured with earthbucket
² Measured with counterweight and driver ± kg
